Trend T1 Dual Base 1/4" Trim & Plunge Router
Trend T1 Router Overview
Trend T1 Router Key Applications
Edge Moulding
Hinge Fitting and Grooving
Templating and Profiling

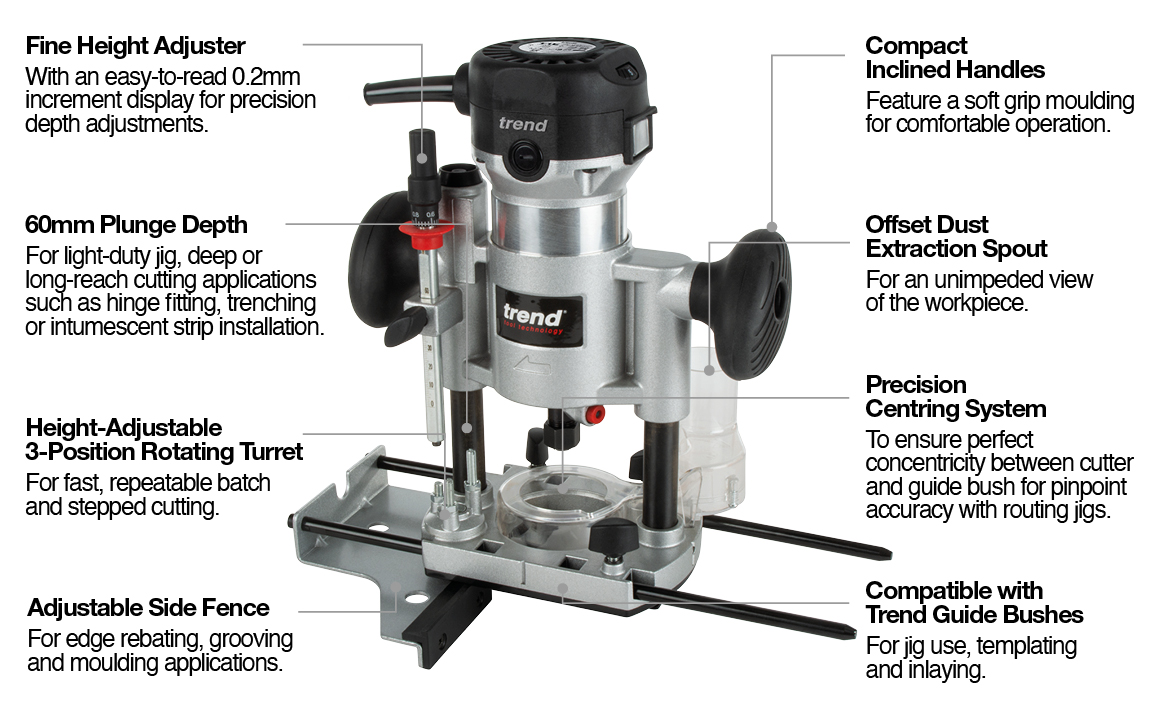

Trend T1 Router Features
710W Motor with Soft-Start to prevent kick-back and protect the workpiece.
The Trend T1ETS & T1EPS Routers come with an Extended Trim Base with Rack & Pinion Height Adjustment and up to 37mm cut depth.
The Trend T1EPS Router with Plunge Base allows for a 60mm Plunge Depth for light-duty jig, deep or long-reach cutting applications such as hinge fitting, trenching or intumescent strip installation.
Precision Centring System to ensure concentricity between cutter and guide bush for pinpoint accuracy with routing jigs.
6-Level Variable Speed Control offers precise control across a wide range of cutters, materials and applications.
Double Locking Collet prevents accidental cutter ejection while a multi-spline profile ensures concentric clamping of the cutter shank.
Fine Height Adjuster* with an easy-to-read 0.2mm increment display for precision depth adjustments.
Height-Adjustable 3-Position Rotating Turret* for fast, repeatable batch and stepped cutting.
Compact Inclined Handles* feature a soft grip moulding for comfortable operation.
Offset Dust Extraction Spout* for an unimpeded view of the workpiece.
Compatible with Trend Guide Bushes for jig use, templating and inlaying.
Adjustable Side Fences for templating and edge rebating.
Trend T1 Router Details
- 710W Motor with Soft-Start to prevent kick-back and protect the workpiece.
- Extended Trim Base with Rack & Pinion Height Adjustment and up to 37mm cut depth.
- Plunge Base with 60mm Plunge Depth for light-duty jig, deep or long-reach cutting applications such as hinge fitting, trenching or intumescent strip installation.
- Precision Centring System to ensure concentricity between cutter and guide bush for pinpoint accuracy with routing jigs.
- 6-Level Variable Speed Control offers precise control across a wide range of cutters, materials and applications.
- Double Locking Collet prevents accidental cutter ejection while a multi-spline profile ensures concentric clamping of the cutter shank.
- Fine Height Adjuster with an easy-to-read 0.2mm increment display for precision depth adjustments.
- Height-Adjustable 3-Position Rotating Turret* for fast, repeatable batch and stepped cutting.
- Compact Inclined Handles* feature a soft grip moulding for comfortable operation
- Offset Dust Extraction Spout for an unimpeded view of the workpiece.
- Compatible with Trend Guide Bushes for jig use, templating and inlaying.
- Adjustable Side Fences for templating and edge rebating.
- Tough Polyester Kit Bag for storage of the router and all accessories.
